1983 O'Day 34

Hingham, Massachusetts

$23,500

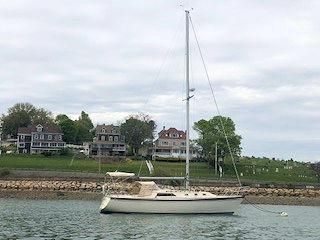

The O'Day 34 is a comfortable, spacious cruising boat with excellent sailing performance.  While designed as a coastal cruiser, a sistership, YUKON JACK, was the overall winner of the 1989 Marion - Bermuda race. ACADIA IV is a shoal draft model.  With a draft of only 4' 3" she can venture in places that most boats her size are unable to enter.  ACADIA IV appears to have had good care.  She's been hauled for the winter and may be easily inspected.

Basic Boat Info

Boat Name: ACADIA IV
Make: O'Day
Model: 34
Year: 1983
Condition: Used
Category: Sail
Builder: O'Day
Designer: Ray Hunt Associates/John Deknatel
Construction: Fiberglass
Boat Hull ID: XDYU0226M84D
Has Hull ID: Yes
Keel Type: Fin Keel

Dimensions

Length: 34 ft
Length Overall: 34 ft
Waterline Length: 28'9 ft
Beam: 11'3 ft
Max Draft: 4'3 ft
Displacement: 11,500 lb
Ballast: 4,600 lb

Engines / Speed

Engines: 1

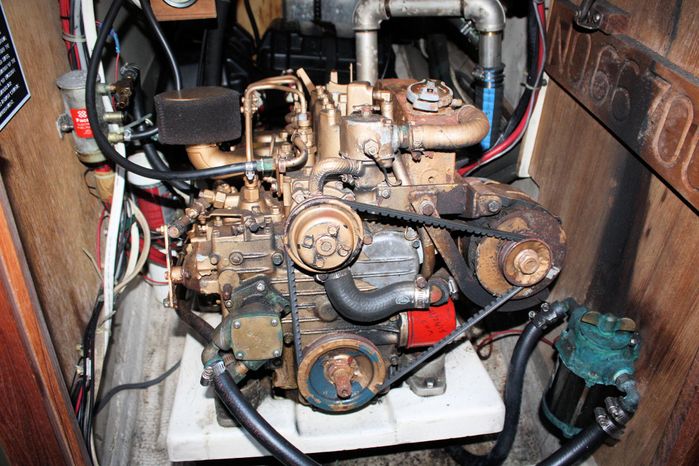

  • Make: Universal
  • Model: M25
  • Fuel: Diesel
  • Engine Power: 21hp
  • Propeller Type: 2 Blade, Bronze
  • Year: 1983
  • Engine Hours: 1247

Tanks

Fuel Tanks: 1
Fuel Tank Capacity: 30 gal
Fuel Tank Material: Aluminum
Water Tanks: 1
Water Tank Capacity: 50 gal
Water Tank Material: Plastic
Holding Tank Count: 1
Holding Tank Capacity: 15 gal
Holding Tank Material: Stainless Steel

Other

Heads Count: 1
Boat Class: Cruisers, Unspecified, Sloop

Contact

John L. Procter, CPYB
Lawson Yachts LLC

Office

Lawson Yachts LLC
190 Lincoln Street
Hingham, Massachusetts, US, 02043
Tel:781-749-1645
Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.



Accommodations

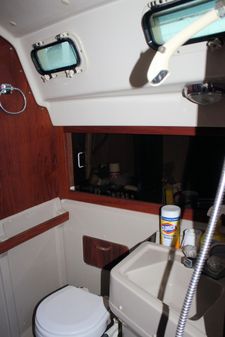

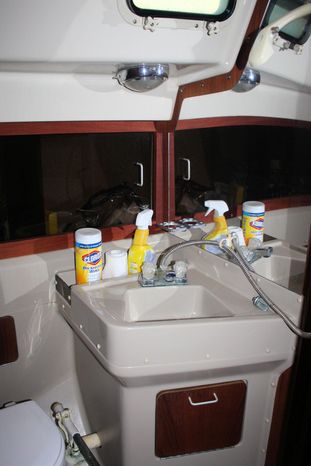

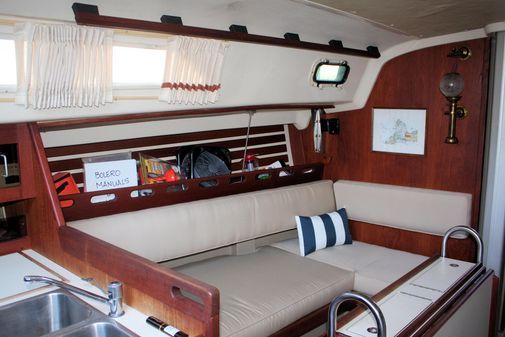

Sleeps six.  V berth forward with drawer storage and shelves port and starboard. Enclosed head with vanity and shower next aft to port, hanging locker opposite to starboard.  Main cabin with settees port and starboard.  Port settee pulls out to convert to double berth. Bulkhead-mounted teak dining table with leaf.  Galley is aft to port. Nav table and quarterberth opposite to starboard.  Cushions in main cabin and quarterberth were new in 2020.  V berth cushions were replaced by previous owner. Teak and holly cabin sole.

Galley

U-shaped galley is aft to port and features Seaward stainless steel three-burner propane stove with oven, double stainless steel sink with hot and cold pressurized water, and 12/110 volt Norcold coldplate air-cooled refrigerated ice box.

Electrical

12 volt DC and 110 volt AC dockside sytems.  12 volt system includes two Group 31 12 volt batteries, battery selector switch, and breaker panel.  110 volt system includes 30 amp shore power cord and breaker panel. Engine has a 55 amp alternator.  Newmar 15 amp battery charger.

Electronics and Navigation

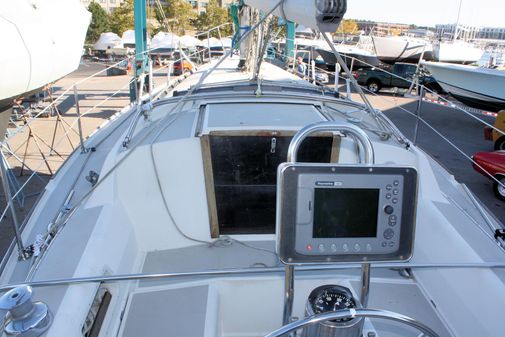

Raymarine C80 GPS/chartplotter with integrated radar, Raytheon NAV 898 GPS/loran, Navico Powerpilot JB 8000 autopilot with hydraulic linear drive, Raymarine R 10X radar with mast-mounted radome, SR Mariner KL-2 knotmeter/log (working but not accurate) and SR Mariner DM-1C depthsounder (not working), Standard Horizon WS-45 apparent windspeed/direction indicator (wind speed is working, apparent wind direction not accurate), Cobra VHF radio transceiver with DSC, Ritchie 5" pedestal-mounted compass.

Hull and Deck

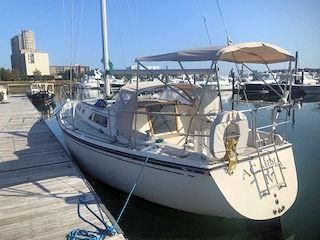

White topsides, white deck with contrasting tan nonskid, blue bottom, blue cove and boot stripes.  Edson pedestal wheel steering.  Bow anchor roller, recessed foredeck anchor locker, double lifelines with boarding gates port and starboard, transom-mounted stainless steel swim ladder.  Six opening ports, one overhead hatch. Transom-mounted swim ladder.

Sails and Rigging

Keel-stepped mast.  Cruising Design continuous line roller-furling system for genoa.  Doyle sail inventory includes fully-battened mainsail (2013) with three sets of reef points and a Battslide system and roller-furling 125% genoa (2010), both in good condition. Barlow winch inventory includes two #25 primary genoa sheet winches, one #16 winch on cabin top, a mast-mounted #19 spinnaker halyard winch, and a mast-mounted #16 genoa halyard winch. Two Lewmar #40 self-tailing winches, not installed.

Additional Inventory

Sunbrella cockpit dodger, bimini (with extender to dodger), and mainsail cover, all new in 2020.  Dodger connects to bimini. Cockpit cushions, screens for hatches. Stainless steel barbecue grill. 18 lb. Danforth anchor with 3/8" chain and 5/8 nylon rode. Spare Danforth anchor with 1/4" chain and 1/2" nylon rode. Airguide bulkhead-mounted clock and barometer. Galleyware. Misc. PFD's. One portable fire extinguisher, one automatic fire extinguisher in engine compartment. Flares: numerous Orion hand held red rockets and 12-gauge aerials – all expired; Weems & Plath electronic flare SOS distress light. Spotlight, basic first aid kit, air horn. Emergency tiller. Misc. fenders and docklines. Boat hook, bosun's chair, winch handles.
